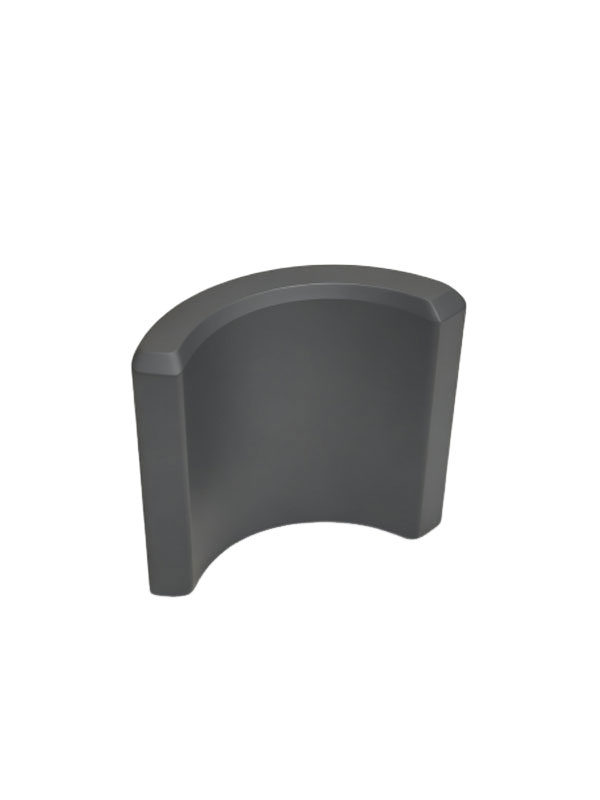

Our Ferrite Magnets Are Specially Designed for 390L Motors

geometric dimensions:R13.1,R10,W22.7,h4.25,H10.5,L47,
Magnetic performance parameters:
1.Br:4350Gs
2. Hcb:330kA/m
3.Hcj:365kA/m
4. (BH)max:36.5kJ/m³

Availability:
Quantity:

Product Introduction

Our ferrite magnets are specially designed for 390L motors used in large floor mops and heavy-duty cleaning equipment. Made of high-performance sintered strontium ferrite, they feature stable magnetic properties and strong power output, suitable for long-time and high-load operation.


Cost Performance

The products feature stable and reliable performance with excellent cost control, providing ultra-high cost-performance. They are durable, anti-demagnetization and long-lasting, bringing lower overall cost for mass production.


Advantages

· Stable magnetic properties, high resistance to demagnetization, high temperature, dust and humidity.

· High dimensional accuracy, perfect fitting and engaging force with 390L motors.

· Strong torque output, smoother and more powerful operation.

· Smooth appearance, no burrs, no chipping, low noise and easy assembly.


Application Scope

Widely used in large floor mop motors, 390L motors, heavy-duty cleaning machines, commercial floor scrubbers, high-power cleaning equipment and other home appliances.


After-Sales Service

· Free samples for testing are available.

· Customization according to drawings, sizes and performance requirements.

· Accept small & large orders with fast and stable delivery.

· Professional technical support and quick after-sales response.
